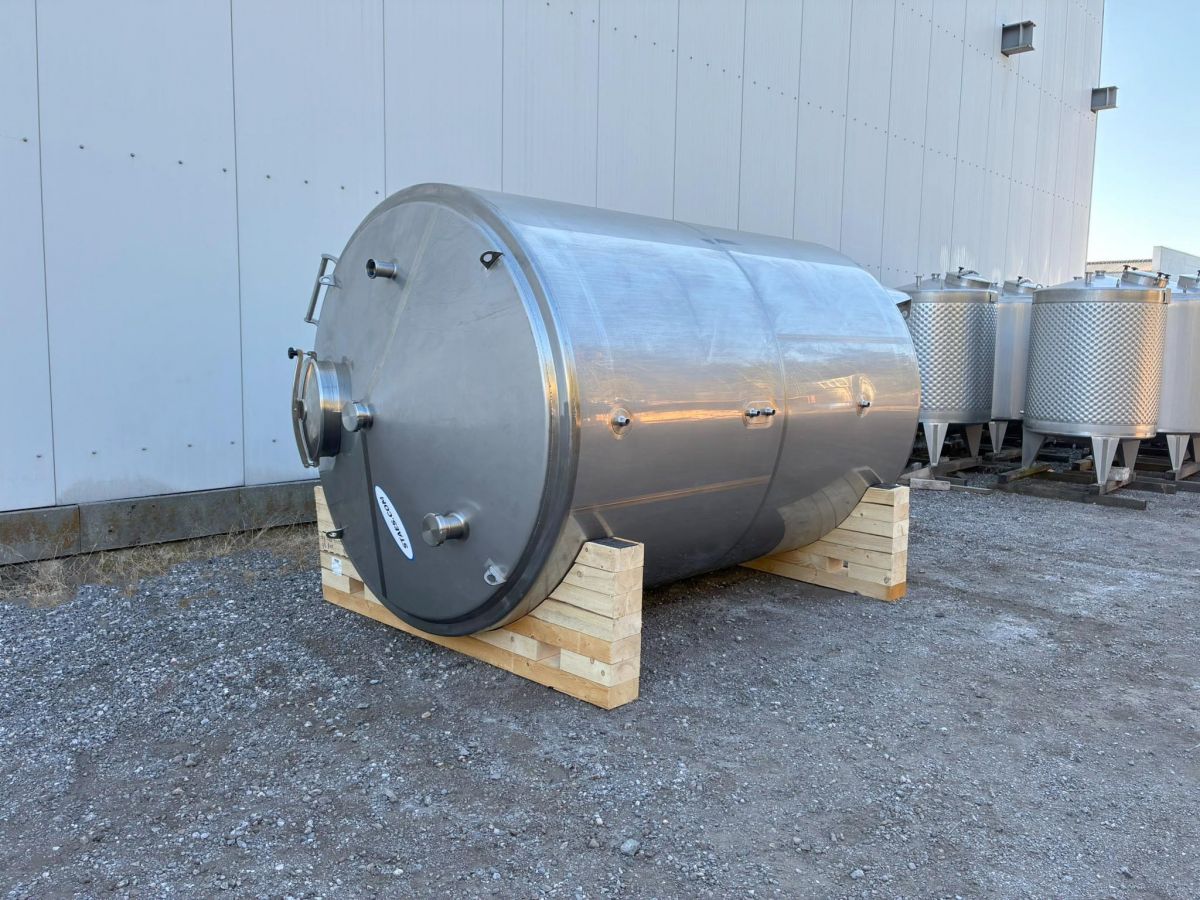

10300 liter tank i Syrafast 316

Article type: second-hand storage tank Additional information: we can’t give any guarantees about the heating/cooling jacket Volumetric volume (L): 10.300 L Max. density P (kg/m³): 1.200 Ra inner weld: 40,00 Finish stainless steel: 2B Pressure in tank: ATM – atmosferic Max. temperature (°C): 80 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 316L (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Top type: conical 15 ° Shape of tank: cylindrical Bottom type: conical 15 ° Bottom outlet: yes Total discharge: yes Fixation points: 4 adjustable feet Type of HE on the cylinder: half pipe welded onto the outside of the innertank Position HE: the complet cilinder Number of windings: 2 Height HE: 2.116 mm Number of sections: 2 Height per section: 1.058 mm Water pressure HE: 3 Bar Steam pressure HE: 0,49 Bar Connection HE: 1 inch BSP Working temperature HE cylinder: 100 °C Type HE: half pipe welded onto the outside of the innertank Type of HE on the bottom: dimple-jacket Connection of the bottom to the cylinder: buiten isolatie Water pressure HE: 3 Bar Steam pressure HE: 0,49 Bar Heat exchanger: RVS – 304 with rockwool insulation Insulation material: rockwool Outer jacket (ornamental wall): RVS 304L Manway(s): RVS 316 Gasket manway(s): EPDM Fixation point(s): RVS 304 Suitable for food industry: yes Documents included: yes, optional Technical drawing included: yes Registration plate on the tank: yes Flange for agitator: no Number of manways: 2 Position of manway: headside Hinged lid: yes Position 2nd manway: cylinder Height manhole 2 (mm): 440 x 310 mm Hinged lid: yes Tank outlet: inside Ø 50 mm Outlet type: DIN11851 Agitator: no, optional Top: 2 mm Cylinder: 2,50 mm Bottom: 3 mm Cylinder: 2 Insulation body: yes Bottom: 2 Insulation bottom/sides: yes finish of the outer jacket: welded Insulation thickness: 50 Internal diameter tank: 2.024 mm Distance from outlet to ground: 281 mm Outer diameter tank: 2.194 mm Cylinder height: 3.000 mm Total height of tank: 4.041 mm Empty weight tank: 1.300
